ACR phantom-맘모 정도관리용 표준팬텀 CIRS Model 015

맘모 정도관리용 표준팬텀 CIRS Model 015.



CIRS Model 015 팬텀은 ACR 맘모용 팬텀으로 맘모장비의 품질관리용 QC팬텀으로서 기본적인 팬텀.



국내법으로 정해진 특수의료기기 설치 및 운영에 관한 규칙에서 정도관리용 팬텀으로 지정된 표준팬텀

---

 유방 촬영용 장치

---

표준팬텀

Nuclear Associates 18-220 유방 팬텀, RMI 156 유방 팬텀, CIRS사 model 15 유방 팬텀 및 보건복지부장관이 정하는 바에 따라 이와 동등함이 검증된 팬텀



팬텀 촬영 조건



1. 50% 유방실질, 50% 지방으로 구성되고 4.2㎝로 압박된 유방을 촬영하는 조건

2. 평균유선선량이 3.0 mGy 이하이어야 한다.

3. 필름의 배경광학농도(Optical density): 1.4 이상



제출영상

팬텀 촬영 영상 1부(영상에는 장비고유번호와 촬영날짜를 표시하여야 한다)





합 격 기 준



섬 유 소     :    4개 이상 관찰

작은 석회화 그룹  : 3개 이상 관찰

종괴        : 3개 이상 관찰

모조병소 : 10개 이상 관찰







섬유소 (fibers)(nylon fiber)
1	1.56mm
2	1.12mm
3	0.89mm
4	0.75mm
5	0.54mm
6	0.40mm

석회화 알갱이그룹 (specks)(Al203 speck)
7	0.54mm
8	0.40mm
9	0.32mm
10	0.24mm
11	0.16mm

종괴(mass)(thickness)
12	2.00mm
13	1.00mm
14	0.75mm
15	0.50mm
16	0.25mm

The Mammography Quality Standards Act (MQSA) of 1992
requires that all mammography facilities in the United States
be accredited by an approved body. The American College
of Radiology is an MQSA approved accreditation body. To
receive MQSA accreditation, each facility must submit an image
of an ACR-approved phantom and, to maintain accreditation,
the phantom must be imaged weekly and records of
those images maintained. The ACR has approved the CIRS
Model 015 for use in the ACR Mammography Accreditation
Program.

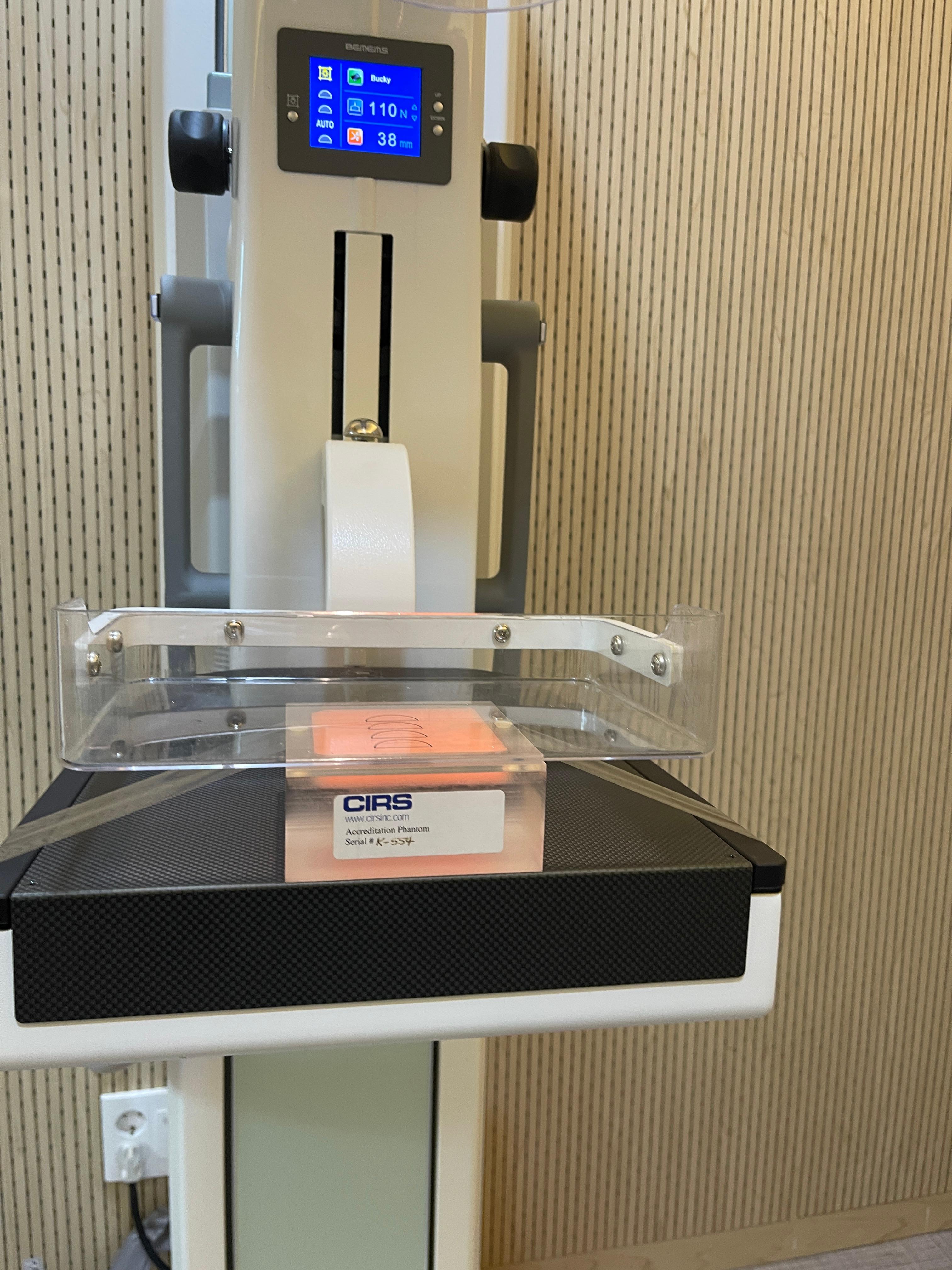

The CIRS Model 015 Mammographic Accreditation Phantom
was designed to test the performance of a mammographic
system by a quantitative evaluation of the system’s ability
to image small structures similar to those found clinically.
Objects within the phantom simulate calcifications, fibrous
calcifications in ducts and tumor masses.



The phantom is designed to determine if your mammographic
system can detect small structures that are important in
the early detection of breast cancer. Test objects within the
phantom range in size from those that should be visible on
any system to objects that will be difficult to see even on the
best mammographic systems.



 제조사 : CIRS (computerized imaging reference system)

맘모 정도관리용 표준팬텀 CIRS Model 015

. 크기 : dia 10.8cm *10.2cm*4.4cm

. 무게 : 0.91kg

. material : polymethylmethacrylate(PMMA)
